Osborne Scratch Compass
Osborne Professional Scratch Compass
Solid professional scratch compass made from high-quality tool steel with interchangeable scratch tips.

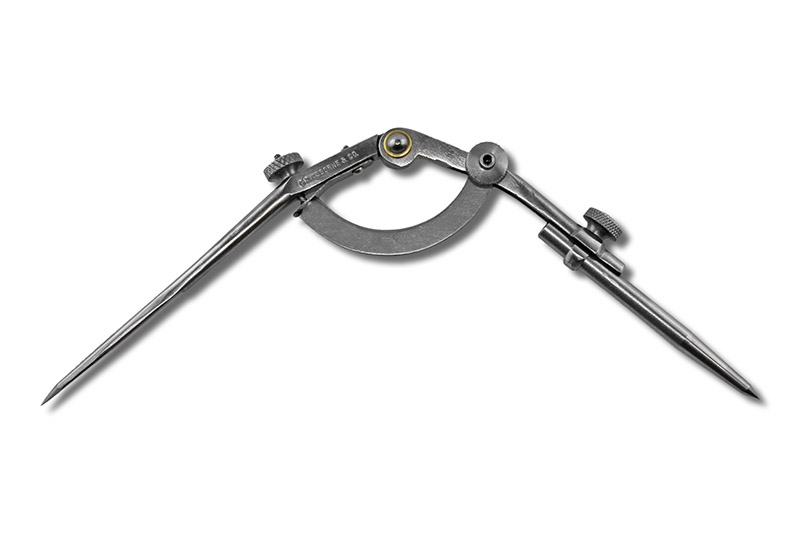

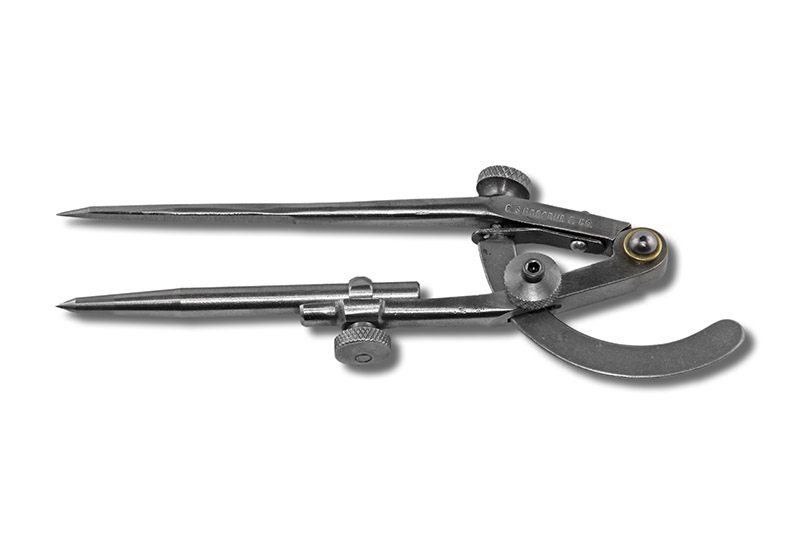

The width of the compass can be adjusted with the two set screws. The first set screw mounted on the guide rail allows coarse adjustment, the second set screw provides fine adjustment. With this help, exact distances can be set.

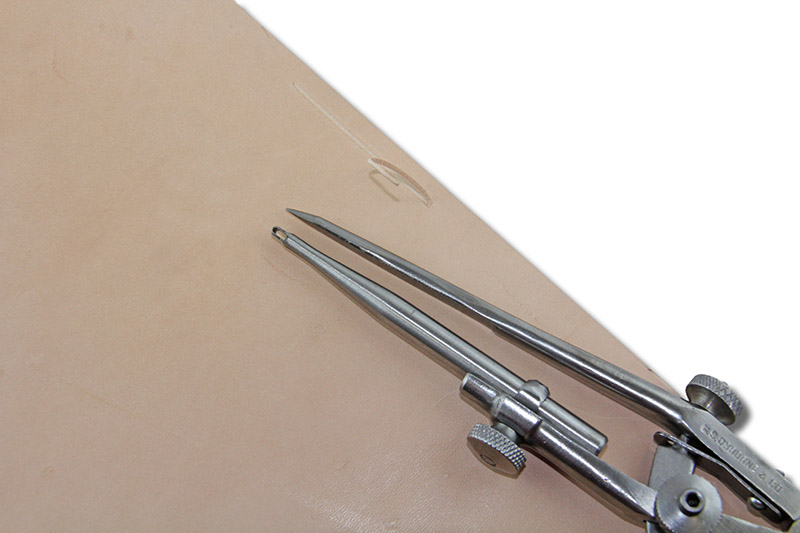

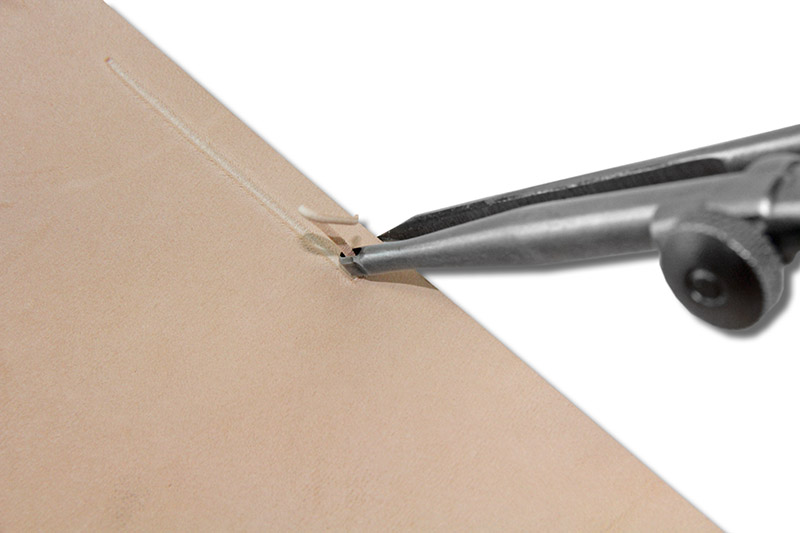

In additon to the scribe tip, 3 different sizes of scratchers are coming with this set. These are characterized by their excellent sharpness and edge retention. With these the wing divider transforms into an outstanding stitching groover in no time. Decorative circles and decorative ornamental grooves can be generated at any distance from the leather edge.
Dimensions:
Total length: 180 mm
Span max: 250 mm (with scribe tip)
Span min: 3 mm (with scribe tip)
Fine adjustment: within approx. 1.5 mm
The following items are included:
1x Osborne Professional Scratch Compass
1x scratch tip with approx. 1.2 mm cutting width
1x scratch tip with approx. 1,7 mm cutting width
1x scratch tip with approx. 2,0 mm cutting width
