Double cap rivet setter - setting tool for rivets with a cap diameter of 6 mm
Consisting of a small anvil and a rivet setter. The anvil has a straight and a concave face (suitable for round head and double round head rivets).
The rivet setter has a concave face (in the radius of the double cap rivets) and can be used for rivets with a cap diameter of up to 6 mm.
Feet for Bag– Setting Tool setting tool for rivets with a cap diameter of 9 mm
Consisting of a small anvil and a rivet setter. The anvil has a straight and a concave face.
The rivet setter has a concave face (cone shape) and can be used for rivets with a cap diameter of 9 mm.
Cap Rivet Setter 11 mm for Screw Press
2-part complete set Suitable for all cap rivets available in our shop with a cap diameter of up to 11 mm.
Note:- For use, you need a screw press with a 1/4" thread and a 24 pitch (6.35 mm).- Not suitable for double round head rivets
Dimensions:Top thread: 1/4 "with 24 pitch (6.35 mm)Insert bottom: Ø 12 mm
Cap Rivet Setter 9 mm for Screw Press
2-part complete set Suitable for all cap rivets available in our shop with a cap diameter of up to 7 mm.
Note:- For use, you need a screw press with a 1/4" thread and a 24 pitch (6.35 mm).- Not suitable for double round head rivets
Dimensions:Top thread: 1/4 "with 24 pitch (6.35 mm)Insert bottom: Ø 12 mm

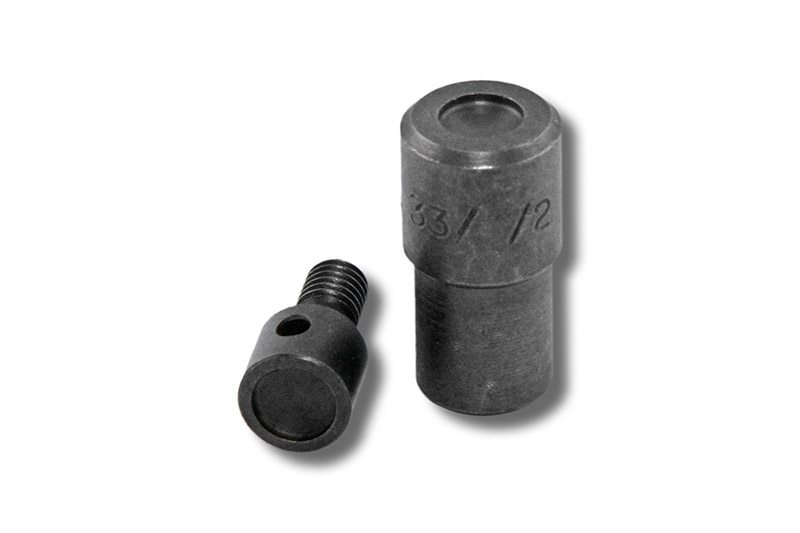

Cap rivet setting tool 7 mm for screw presses
2-part complete set Suitable for all cap rivets available in our shop with a cap diameter of up to 7 mm.
Note:- For use, you need a screw press with a 1/4" thread and a 24 pitch (6.35 mm).- Not suitable for double round head rivets
Dimensions:Top thread: 1/4 "with 24 pitch (6.35 mm)Insert bottom: Ø 12 mm
Double cap rivet setter - setting tool for rivets with a cap diameter of 9 mm
Consisting of a small anvil and a rivet setter. The anvil has a straight and a concave face (suitable for round head and double round head rivets).
The rivet setter has a concave face (in the radius of the double cap rivets) and can be used for rivets with a cap diameter of up to 9 mm.
Double Cap Rivet Setter 11 mm for Screw Press
2-piece complete set suitable for all double cap rivets available in our shop with a cap diameter of up to 11 mm.
Note:- For use, you need a screw press with a 1/4 "thread with 24 pitch (6.35 mm).
Dimensions:Top thread: 1/4 "with 24 pitch (6.35 mm)Insert bottom: Ø 12 mm
Double cap rivet setting tool 7 mm for screw presses
2-piece complete set suitable for all double cap rivets available in our shop with a cap diameter of up to 7 mm.
Note:- For use, you need a screw press with a 1/4 "thread with 24 pitch (6.35 mm).
Dimensions:Top thread: 1/4 "with 24 pitch (6.35 mm)Insert bottom: Ø 12 mmm
Double cap rivet setting tool 9 mm for screw presses
2-piece complete set suitable for all double cap rivets available in our shop with a cap diameter of up to 9 mm.
Note:- For use, you need a screw press with a 1/4 "thread with 24 pitch (6.35 mm).
Dimensions:Top thread: 1/4 "with 24 pitch (6.35 mm)Insert bottom: Ø 12 mm
Loxx - key "professional"
The Loxx key for easy and secure attachment of our Loxx threaded self-locking fasteners. Thus, you have the opportunity to completely screw the thread together and thus achieve the best possible hold for your buttons. With the sturdy wooden handle you have everything in your hand.
Loxx - key "standard"
The Loxx key for easy and secure attachment of our Loxx self-locking fasteners. Thus, you have the opportunity to completely screw the thread together and thus achieve the best possible hold for your buttons.
Loxx setting tool for screw presses (for rivetable Loxx parts)
2-piece complete set especially suitable for all rivetable Loxx parts available in our shop.
Note:- For use, you need a screw press with a 1/4" thread and a 24 pitch (6.35 mm).- Not suitable for double round head rivets
Dimensions:Top thread: 1/4 "with 24 pitch (6.35 mm)Insert bottom: Ø 12 mm
Osborne Rivets Setting Tool
For setting and pressing copper rivets, e.g. our copper rivet OSB # 1700-12. Please allow at least 2 mm excess of the shaft before riveting.
Total length 114 mm.
Osborne Snap Setting Tool
Available options:
- small: Line 20 (small snaps / Ø 12.5 mm)
- big: Line 24 (big snaps / Ø 15,0 mm)
Or you use our universal snap setting tool (suitable for both sizes).
Please use our revolving punch or mini punch set to prepare the holes (3 / 4mm).
Rivets Setting Tool
For setting and pressing our Copper, Brass and Aluminium Rivets & Burrs. Please allow at least 2 mm excess of the shaft before riveting.
Total length 115 mm.

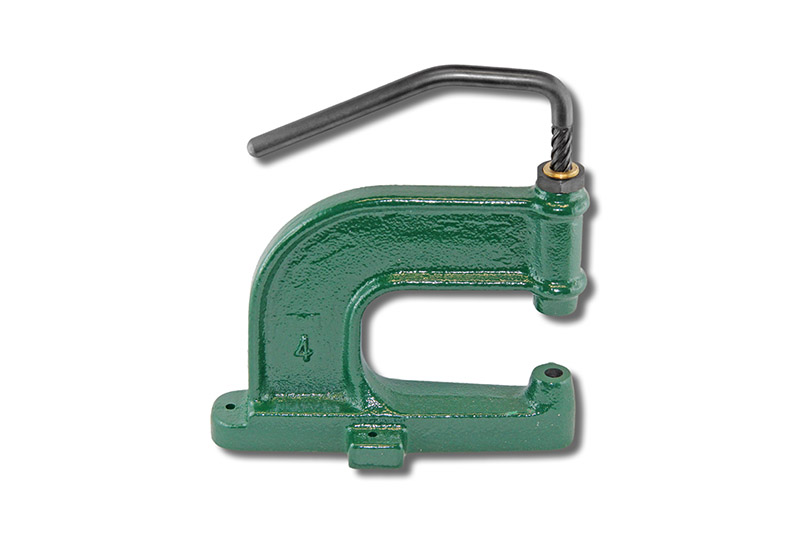

Screw Press - Free Arm
Suitable for professionals and home users. Due to the free-arm design, it is easy to punch holes, set rivets or snaps into already finished items such as pouches for instance.
Hint:- For the use and setting of snaps and rivets you will need the appropriate tool inserts. Inserts are not included, but can be ordered here. These can be found as accessories in our shop.- Screw presses should be firmly attached to a workbench or countertop. Appropriate holes are in screw press' foot. Mounting material is not included!- Our screw presses are only for 1/4 "thread inserts with a 24 pitch (6.35 mm)!
Dimensions:Total height: 31 cmTotal length: 23 cmTotal width: 7.8 cm
Length of footplate: 18 cmWidth of footplate: 7.8 cm
Lift: 4.5 cmProjection: about 10.5 cm
Top thread: 1/4 "with 24 pitch (6.35 mm)Bottom insert: 12 mm
Screw Press - Hobby 2
Suitable for home users who want to connect press studs or rivets or punch holes occasionally.
Hint:- For the use and setting of snaps and rivets you will need the appropriate tool inserts. Inserts are not included, but can be ordered here. These can be found as accessories in our shop.- Screw presses should be firmly attached to a workbench or countertop. Appropriate holes are in screw press' foot. Mounting material is not included!- Our spindle presses are only for 1/4 "thread inserts with a 24 pitch (6.35 mm)!
Dimensions:Total height: 25.5 cmTotal length: 22.5 cmTotal width: 7.8 cm
Length of footplate: 18.5 cmWidth of footplate: 7.8 cm
Lift: 4.8 cmProjection: about 8.5 cm
Top thread: 1/4 "with 24 pitch (6.35 mm)Bottom Insert: 12 mm
Screw Press - Professional 2
Suitable for professionals and home users. For fatigue-free punching of holes into thick leather and setting rivets or snaps.Professional version with 15.5 cm projection.
Hint:- For the use and setting of snaps and rivets you will need the appropriate tool inserts. Inserts are not included, but can be ordered here. These can be found as accessories in our shop.- Screw presses should be firmly attached to a workbench or countertop. Appropriate holes are in screw press' foot. Mounting material is not included!- Our screw presses are only for 1/4 "thread inserts with a 24 pitch (6.35 mm)!
Dimensions:Total height: 29 cmTotal length: 30 cmTotal width: 10 cm
Length of footplate: 30 cmWidth of footplate: 10 cm
Lift: 4.5 cmProjection: about 15.5 cm
Top thread: 1/4 "with 24 pitch (6.35 mm)Bottom insert: 12 mm
Screw Press Tubes - 15 different sizes
Available tubes (Ø mm): 0.5 - 7 mm + 8 mm
Hint:- The tubes only fit into screw presses witht the below dimensions.
Dimensions:Top thread: 1/4 "with 24 pitch (6.35 mm)Insert below: Ø 12 mm
When ordering, you will receive 1 tube of the chosen size!
Screw Press Anvil - 3 different sizes
Available anvils (Ø mm): 12 mm, 24 mm, 28 mm
Hint:- Anvils require an insert with a diameter of 12 mm.
When ordering, you will receive 1 anvil of the chosen size!
Screw Press - Hobby
Suitable for home users who want to connect press studs or rivets or punch holes occasionally.
Hint:- For the use and setting of snaps and rivets you will need the appropriate tool inserts. Inserts are not included, but can be ordered here. These can be found as accessories in our shop.- Screw presses should be firmly attached to a workbench or countertop. Appropriate holes are in screw press' foot. Mounting material is not included!- Our Screw Press - es are only for 1/4 "thread inserts with a 24 pitch (6.35 mm)!
Dimensions:Total height: 21.5 cmTotal length: 18.5 cmTotal width: 7 cm
Length of footplate: 14 cmWidth of footplate: 7 cm
Lift: 4.2 cmProjection: about 5.5 cm
Top thread: 1/4 " with 24 pitch (6.35 mm)Bottom insert: 12 mm
Setting tool for domed rivets in 4 different sizes
Selection list / sizes:- 7.0 mm- 10 mm- 13 mm- 16.0 mm
If you order 1 piece, you will receive 1 insertion tool for domed rivets of the selected size.

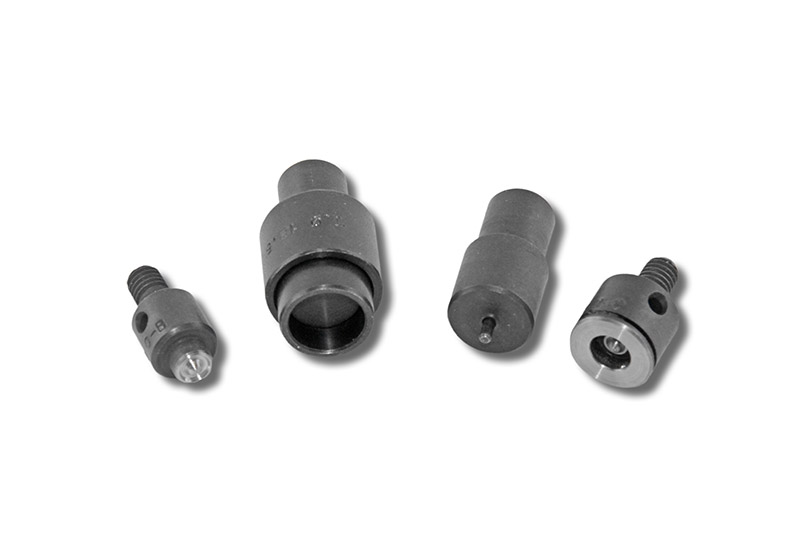

Snap setting tool 15 mm for screw presses
4-part complete set suitable for all ring spring push buttons available in our shop with a size of 15 mm.
Note:- For use, you need a screw press with a 1/4" thread and a 24 pitch (6.35 mm).
Dimensions:Top thread: 1/4" with 24 pitch (6.35 mm)Insert bottom: Ø 12 mm
Tubular Rivet Setter / Setting Tool
Tool for mushrooming of tubular rivets. Centered cone, hardened steel. Please use a working pad or a chopping board, as well as a suitable hammer, for mushrooming the tubular rivets (no metal hammer to eliminate damage to the tool).
Tubular rivets are available in different sizes and materials here: copper plated, brass plated and nickel plated.
Setting tool for all standard double cap rivets and pushbuttons (Line 20 and Line 24 / small & large)
6 - piece set consisting of an anvil with a straight and 4 concave faces (Ø 8.0 mm, 10.5 mm, 13.0 mm, 15.5 mm) for rivets and pushbuttons in all common sizes, as well as 5 punches for corresponding rivet or push-button tops.
Please use a suitable hammer (not a steel hammer) to avoid damaging the tools.
Setting tool for round spots
5-piece-set, consisting of 4 different decorative spot tools tools and an anvil which also serves as a repository.
The setting tools are suitable for ornamental spots of the following sizes: 1/4" (6.35 mm), 3/8" (9.52 mm), 7/16" (11.112 mm) and 1/2" (12.7 mm)
Please use a suitable hammer (not a steel hammer) to avoid damage to the tools.
€58.90*
