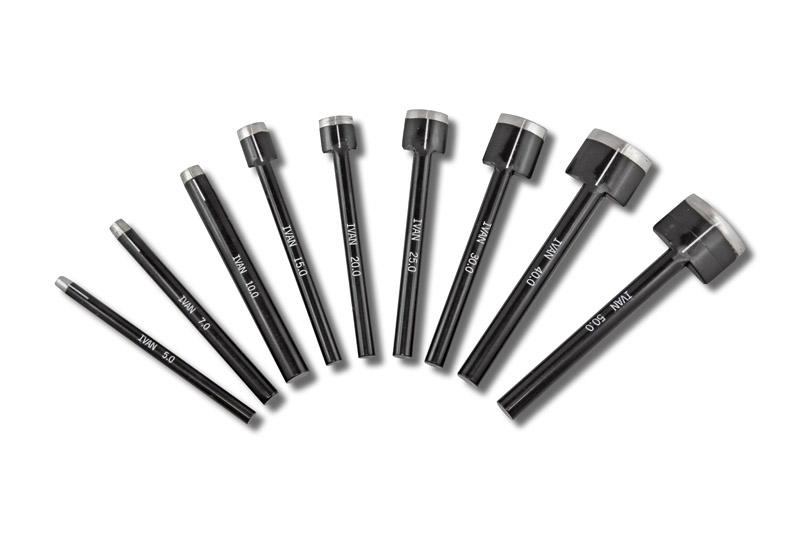

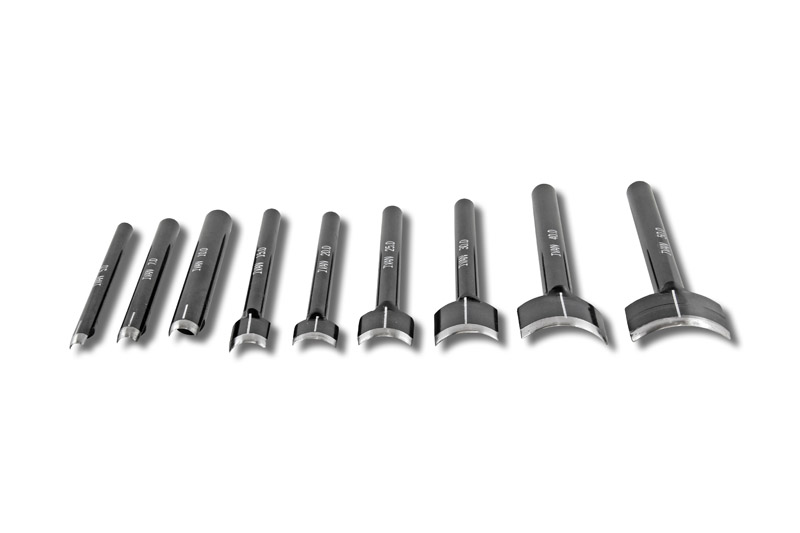

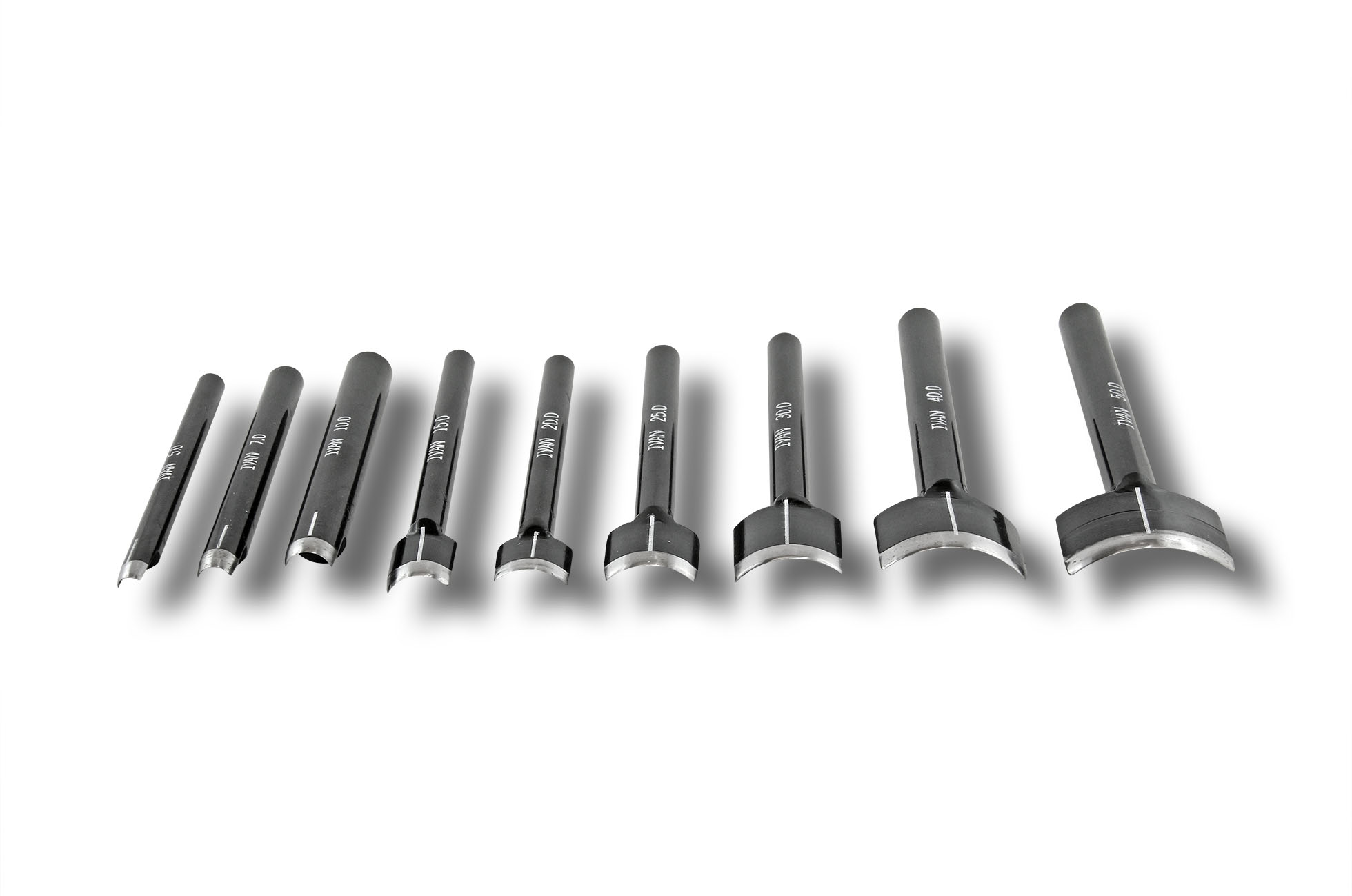

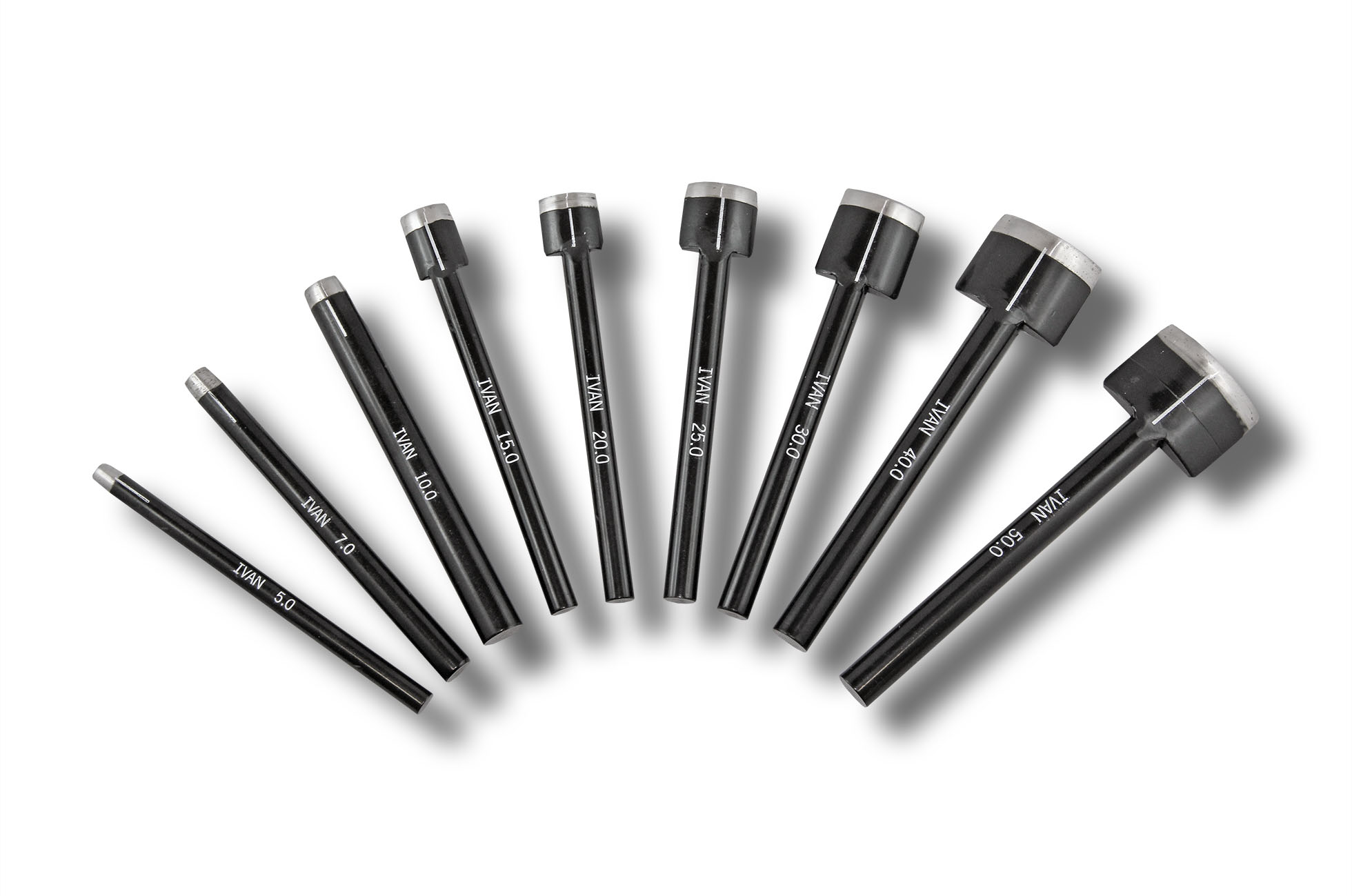

Ecken-Rundeiesen ( Corner Round Punch )

Product information "Ecken-Rundeiesen ( Corner Round Punch )"

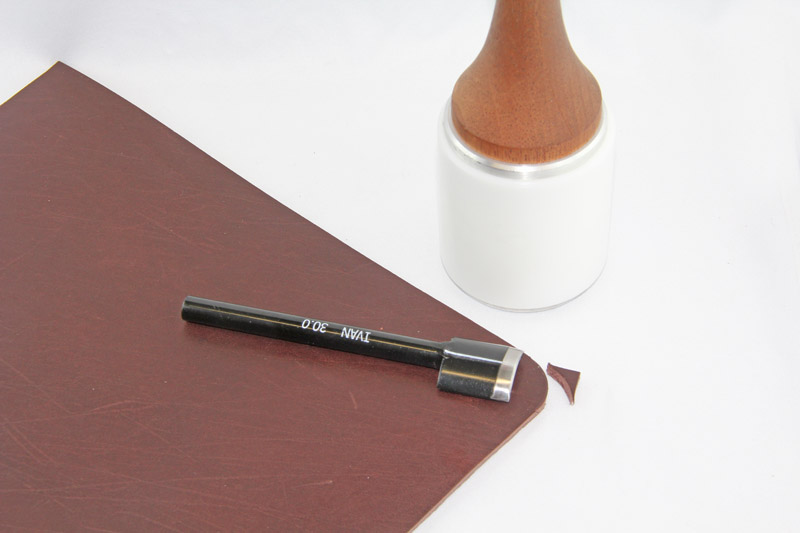

Mit den Ecken-Rundeisen lassen sich mit wenig Aufwand perfekte Radien an Lederkanten erstellen.

Für gute Ergebnisse und Schonung der Werkzeuge verwenden Sie bitte eine geeignete Stanzunterlage aus Kunststoff (z.B. Rickert Stanzunterlage) und einen Schonhammer (aus Kunststoff, Holz oder Rohhaut).

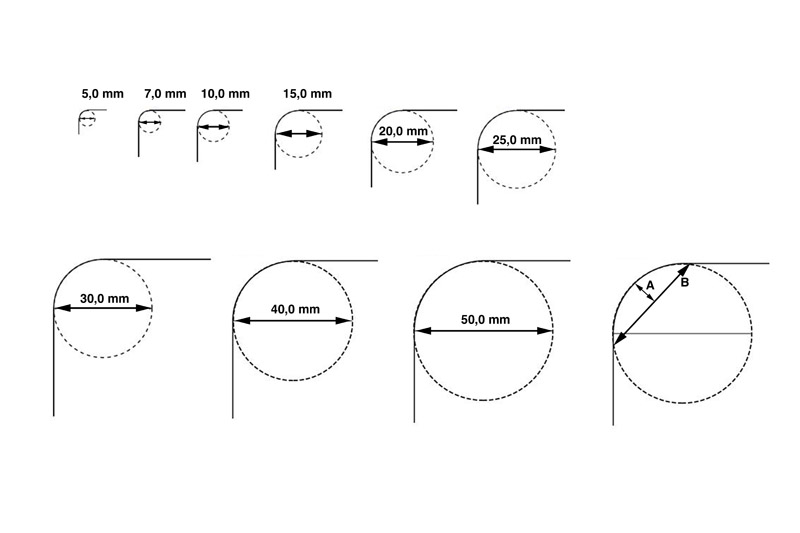

Bitte beachten Sie für die Größenermittelung Abbildung 4.

Ecken-Rundeiesen ( Corner Round Punch )

Ø 5mm (R 2,5) A: 1,0 mm x B: 4,0 mm
Ø 7 mm (R 3,5) A: 1,2 mm x B: 6,0 mm
Ø 10 mm (R 5,0) A: 1,8 mm x B: 7,0 mm
Ø 15 mm (R 7,5) A: 2,2 mm x B: 11,5 mm
Ø 20 mm (R 10,0) A: 3,2 mm x B: 14,5 mm
Ø 25 mm (R 12,5) A: 4,0 mm x B: 18,5 mm
Ø 30 mm (R 15,0) A: 4,7 mm x B: 22,5 mm
Ø 40mm (R 20,0) A: 6,2 mm x B: 29,5 mm
Ø 50mm (R 25,0) A: 7,0 mm x B: 36,0 mm
