Craft Japan Swivel Knife
Product information "Craft Japan Swivel Knife"

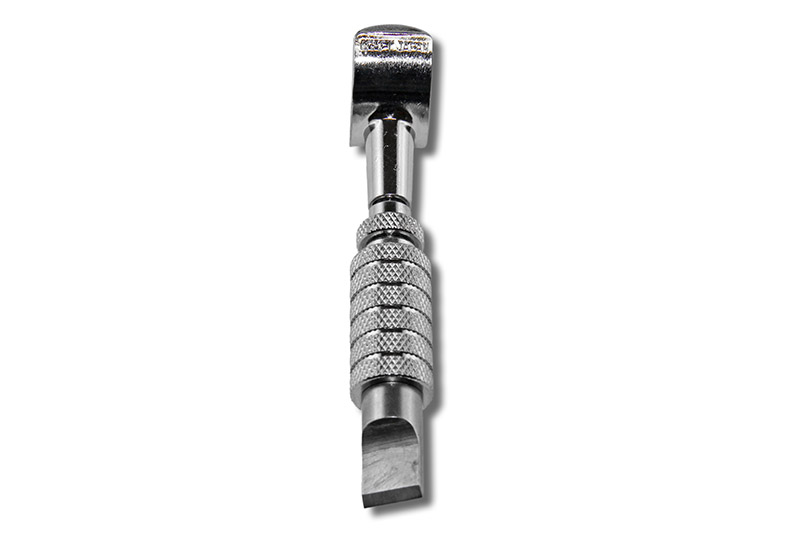

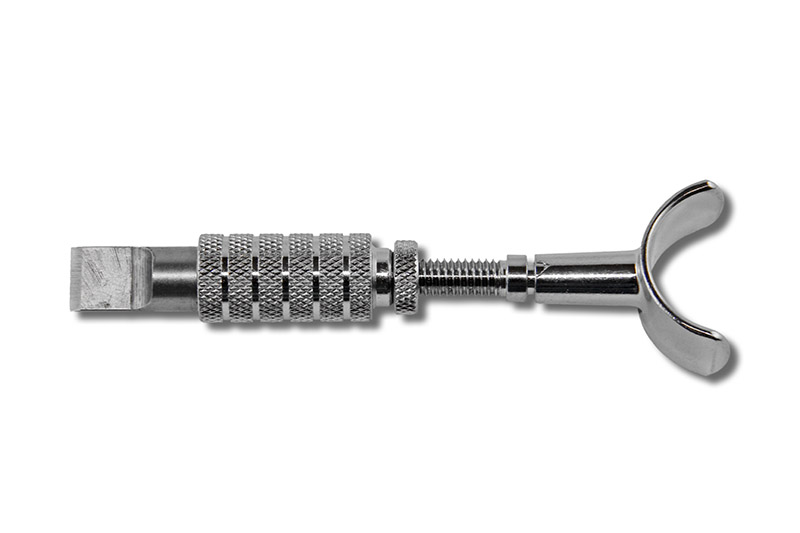

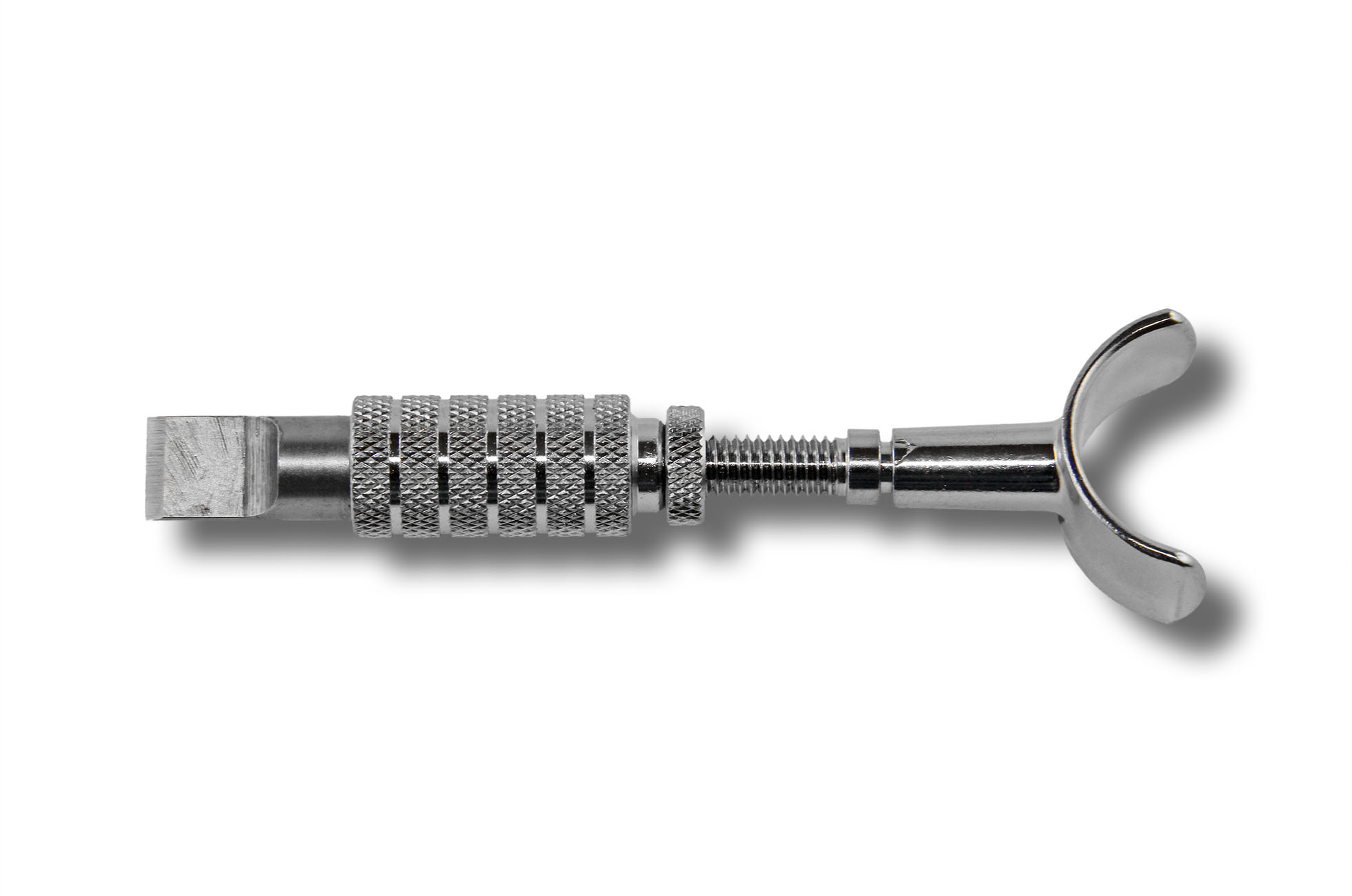

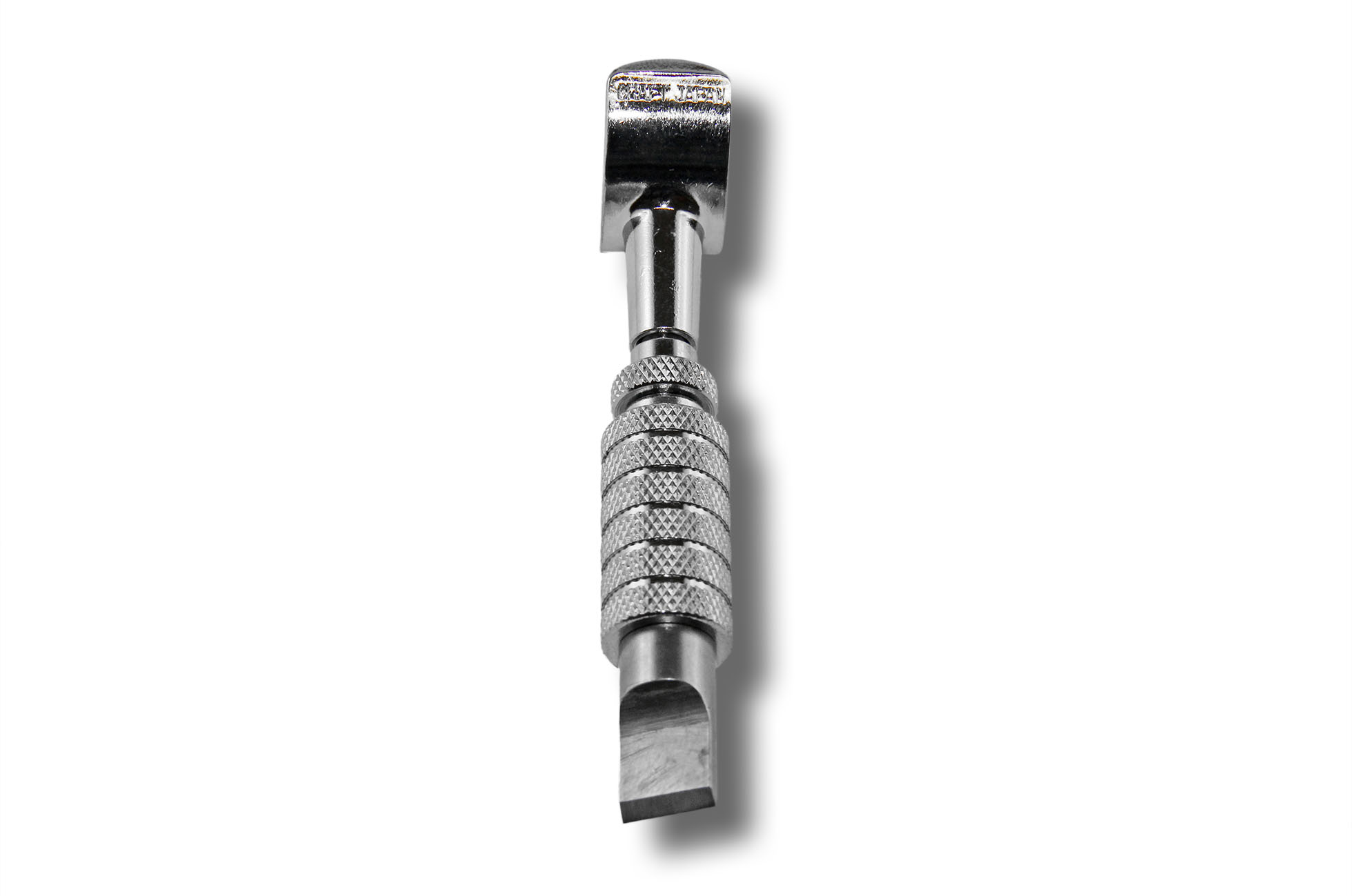

Craft Japan Swivel Knife
Swivel knife with height adjustable saddle to pre-cut the leather before tooling or to cut patterns and pictures into leather. Interchangeable blade.
Dimensions:
Barrel Ø: 13 mm
Total length with blade: 52 mm - 65 mm (Knifebody to lowpoint of the cradle)
Effective adjustable height 13 mm
Shank - diameter: 5.5 mm
Included blade:
Blade length 18.5 mm
Blade width 9.5 mm
Matching blades can be found on the following pages in our shop:
Standard Blades for Swivel Knives
Ceramic Blades for Swivel Knives
Also available: Edge guide for swivel knife.
Login
Accessory Items
Ceramic Blade for Swivel Knife
From
€39.50*
Ceramic Blade for Swivel Knife (price per piece)
Re-sharpening of the blade is eliminated. Permanent sharpness and edge retention for exact cuts.
These blades are suitable for our swivel knife, ergonomic - swivel knife and swivel knife - sets with a shank size of 5.5 mm
Available options:
# 1: normal ceramic blade with a width of 6.0 mm and 2.8 mm thick (oblique bevel)
# 2: normal ceramic blade with a width of 9.5 mm and 2.6 mm thick (straight bevel)
# 3: fine ceramic blade with a width of 6.0 mm and 1.6 mm thick (oblique bevel)
# 4: beader ceramic blade with a width of 9.0 mm and a double bevel at 2.0 mm distance (double bevel)
When ordering 1 piece you will receive 1 ceramic blade of the selected type.
Strop Board
€9.50*
Strop Board
for polishing and stropping of swivel knife blades, round knives or other sharp blades. The strop board is a good alternative to a sharpening stone from our range as it is quite easy to handle.
Our strop board consists of a wooden handle with firmly applied leather strips on both sides. One side with full grain leather (smooth), one side with split leather (rough) for a fine and a coarser polish.
Use:
For the first time use, please apply our jeweler's rouge to the leather first.
Make sure that the blade to be polished already has a good ground finish. The stropping is used to constantly sharpen and polish the blade (for example, before or after each use of the swivel knife). The difference is noticeable with each cut.
Draw the knife evenly over the with jeweler's rouge treated leather with the back side first.
Pay attention to an angle already given to the cutting edge (about 15° - 20°, see figures 3 and 4)
Dimensions:
Overall dimensions: L: 22.5 cm x W: 4.3 cm x H: 1.3 cm
Leather stripes dimensions: L: 14.0 cm x W: 4.0 cm x H: 0.2 cm

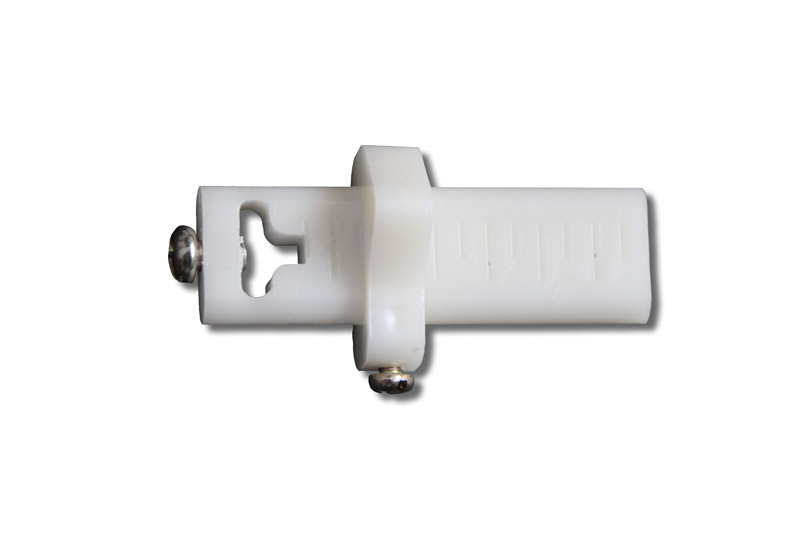

Edge Guide Swivel Knife
€4.50*
Plastic edge guide for the swivel knife for parallel cuts along the edges. The swivel knife is attached by a small screw.Suitable up to a distance of 40mm and as close as 4mm to the edge.
Jeweler´s Rouge
From
€5.90*
Jeweler`s Rouge, 50 gr. in 5 different grits
Please apply the jeweler's rouge to a piece of thin cardboard (e.g., photo cardboard), leather, or our strop board. It is not necessary to dilute these or to change their consistency. Simply take the piece of abrasive paste wrapped in paper out of the plastic tube and tear off a piece (about 1 cm) of the paper around it. Now pull the blade to be sharpened, at a uniform angle and moderate pressure over the applied jeweler's rouge. The result is a dark grinding abrasion.
We recommend our sharpening tool for our swivel knife blades.Available options: - green (extra fine): suitable for a final high gloss polish. - white (fine): standard grit, suitable for polishing and resharpening between operations of knives and swivel knife blades. - red (medium): suitable for grinding slightly blunt knives and swivel knife blades. - brown (coarse): suitable for regular sanding and the removal of light scratches and rust marks from knives and swivel knife blades. - gray (extra coarse): suitable for coarse pre-sharpening of heavily rusted knives and swivel knife blades.
When ordering 1 piece, you will receive 1 abrasive paste of the selected grit grade.
Blades for Swivel Knife
From
€7.50*
Blades for Swivel Knifes (price per piece)
These blades are suitable for our swivel knife, ergonomic swivel knife and swivel knife sets with a shank size of 5.5 mm. (Not suitable for Barry King swivel knives.)
For sharpening we recommend our sharpening tool and jeweler's rouge.
Available options:
# 1: normal - blade with a blade width of 12.5 mm and a thickness of 2.5 mm (straight bevel)
# 2: fine - blade with a blade width of 6.5 mm and a thickness of 1.4 mm (oblique bevel)
# 3: hollow ground - blade with a blade width of 9.5 mm and a thickness of 0.5 mm in the middle at the thinnest point (straight bevel)
# 4: normal - blade with a blade width of 6.5 mm and a thickness of 2.5 mm (oblique bevel)
# 5: normal - blade with a blade width of 9.5 mm and a thickness of 2.5 mm (straight bevel) - this is the blade coming with our standard swivel knives.
# 6: hollow ground - blade with a blade width of 12.5 mm and a thickness of 1.0 mm in the middle at the thinnest point (straight bevel)
# 7: hollow ground - blade with a blade width of 6.5 mm and a thickness of 1.0 mm in the middle at the thinnest point (straight bevel)
# 8: hair blade - blade with a blade width of 4.2 mm and a height of 6.3 mm (oblique bevel)
# 9: normal - blade with a blade width of 6.5 mm and a thickness of 2.5 mm (straight bevel)
# 10: hair blade - blade with a blade width of 2.7 mm and a height of 6.3 mm (oblique bevel)
When ordering 1 piece you will receive 1 blade of the selected version.
Professional Blade for Swivel Knife
From
€17.95*
Professional Blade for Swivel Knife (price per piece)
These blades are suitable for our swivel knives with a 5.5 mm shank size. The blades, which are made of high-strength and cutting properties HCS 1055 glide very well through the leather, allowing easy contour guidance and minimizing the needs for re-sharpening during the respective projects.For sharpening we recommend our sharpening tool and jeweler's rouge.Available options:# 1: hollow ground blade with a blade width of 9.5 mm and a thickness of 1.8 mm, 0.9 mm in the middle at the thinnest point (straight bevel)
# 2: normal blade with a blade width of 6.4 mm and a thickness of 2.3 mm (oblique bevel)
# 3: hollow ground blade with a blade width of 6.4 mm and a thickness of 1.9 mm, 0.7 mm centered at the thinnest point (oblique ground)
# 4: fine blade with a blade width of 6.3 mm and a thickness of 1.6 mm (oblique bevel)
When ordering 1 piece you will receive 1 blade of the selected version.
Sharpening Tool Swivel Knife Blades
€11.90*
Sharpening Tool for Swivel Knife Blades
You can clamp your swivel knife blade into this tool to always retain the exact angle when sharpening.
Please loosen the grub screw to insert the swivel knife blade. Then loosen the locking screw on the top to set the correct angle. By drawing over a suitable grinding medium, you can now sharpen the swivel knife blade accurately.
For sharpening we recommend our Japanese Waterstones (grit size 1000 / grit 4000 or 6000 for fine grinding) or jeweler's rouge.
Ähnliche Artikel
Swivel Knife Set
€33.95*
Swivel Knife Set
Swivel knife with height-adjustable saddle for pre-cutting the leather before tooling or for cutting patterns and images into the leather. Interchangeable blades.Also available: edge guide for the swivel knife.This set includes:- 1 swivel knife- 1 blade with a width of 6.5 mm- 1 blade with a width of 7.5 mm (oblique bevel)- 1 blade with a width of 9.5 mm- 1 blade with a width of 12.5 mmYou can get replacement blades, ceramic blades and other exchangeable blades here.

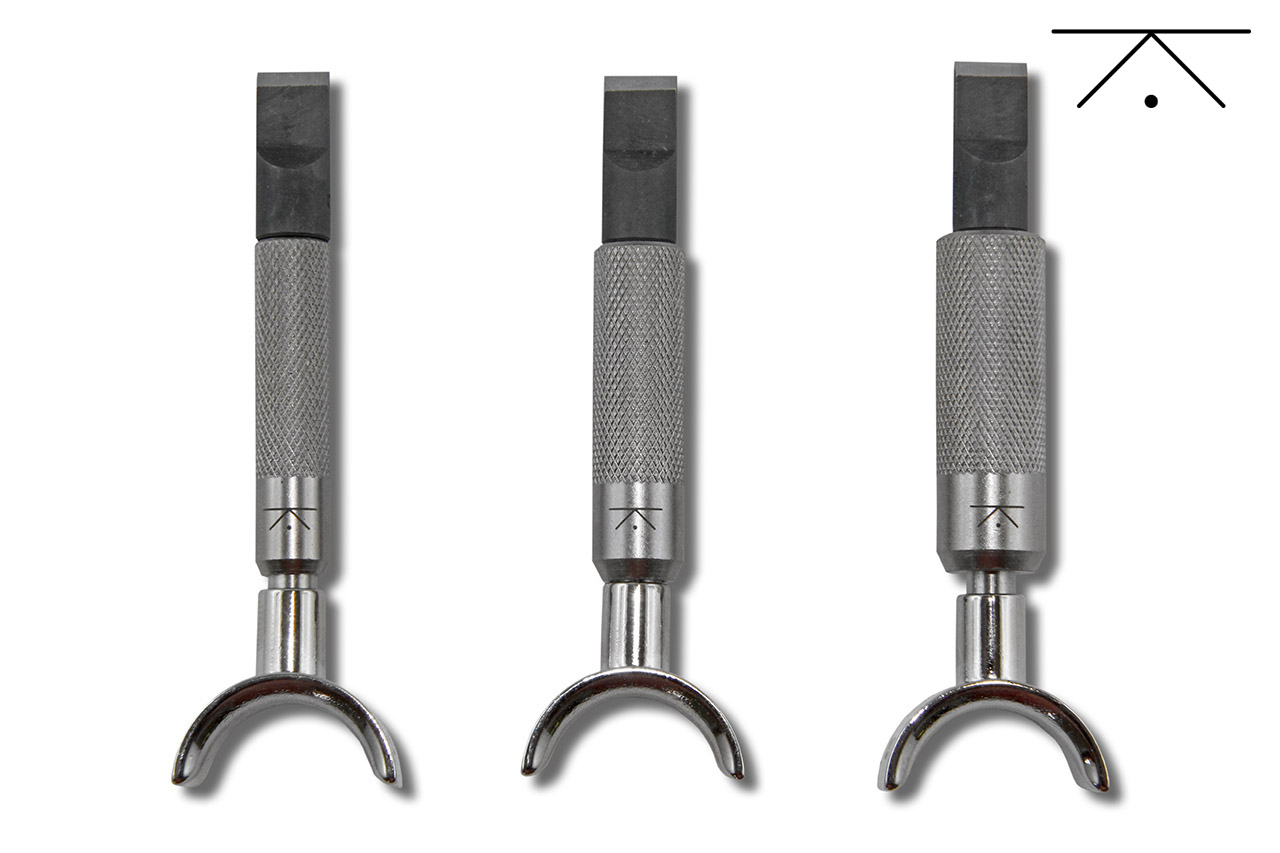

Rickert – Swivel Knife "Classic"
From
€14.95*
Rickert Swivel Knife "Classic"
including polished standard blade and classic finger rest for fine carving. To pre-cut the leather before carving or to cut patterns and pictures into the leather. Good grip thanks to deep knurling of the barrel. The finger rest can be adjusted in height with the enclosed allen wrench, so these swivel knives are adaptable to almost any hand. When properly adjusted, your hands will tire and cramp less and help you with elaborate carving. Depending on your preference, you can choose between 3 different barrel / handle diameters in the selection menu.
- narrow "S"Handle Ø: 9.2 mmOverall length: 55 mm - 73 mm (without blade, from lowpoint of the cradle)Usable height adjustment 18 mmBlade holder - diameter: 5.5 mm
- # medium "M"Handle Ø: 11.2 mmOverall length: 55 mm - 73 mm (without blade, from lowpoint of the cradle)Usable height adjustment 18 mmBlade holder - diameter: 5.5 mm
- # large "L"Handle Ø: 13.2 mmOverall length: 55 mm - 73 mm (without blade, from lowpoint of the cradle)Usable height adjustment 18 mmBlade holder - diameter: 5.5 mm
Info: "Rickert - Leatherworker's Finest" - tools from leather craftsmen for leather craftsmen. All tools of the series are made using traditional Japanese craft techniques. Only selected, high-quality and durable raw materials enter the production. The selected degrees of hardness of the steel are reflected in the precision, sharpness and quality of the respective tools. Each one of these products has been thoroughly tested for quality and durability and are only approved for sale after meeting our exacting standards.
When ordering 1 piece, you will receive 1 tool of the selected type.
Rickert - Professional Swivel Knife
From
€28.95*
Rickert - Professional Swivel Knife
including polished standard blade and ball-bearing finger rest for smooth and finest carving. To pre-cut the leather before carving or to cut patterns and pictures into the leather. Good grip thanks to deep knurling of the barrel. The comfortable finger rest can be adjusted in height with the enclosed allen wrench, so these swivel knives are adaptable to almost any hand. When properly adjusted, your hands will tire and cramp less and help you with elaborate carving. Depending on your preference, you can choose between 3 different barrel / handle diameters in the selection menu.
- narrow "S"Handle Ø: 9.2 mmOverall length: 55 mm - 73 mm (without blade, from lowpoint of the cradle)Usable height adjustment 18 mmBlade holder - diameter: 5.5 mm
- # medium "M"Handle Ø: 11.2 mmOverall length: 55 mm - 73 mm (without blade, from lowpoint of the cradle)Usable height adjustment 18 mmBlade holder - diameter: 5.5 mm
- # large "L"Handle Ø: 13.2 mmOverall length: 55 mm - 73 mm (without blade, from lowpoint of the cradle)Usable height adjustment 18 mmBlade holder - diameter: 5.5 mm
Info: "Rickert - Leatherworker's Finest" - tools from leather craftsmen for leather craftsmen. All tools of the series are made using traditional Japanese craft techniques. Only selected, high-quality and durable raw materials enter the production. The selected degrees of hardness of the steel are reflected in the precision, sharpness and quality of the respective tools. Each one of these products has been thoroughly tested for quality and durability and are only approved for sale after meeting our exacting standards.
When ordering 1 piece, you will receive 1 tool of the selected type.
Ergonomic Swivel Knife
€52.50*
Ergonomic Swivel Knife
Swivel knife with height-adjustable saddle for pre-cutting leather before tooling or for cutting patterns and images into leather. Interchangeable blade.
Also available: edge guide for the swivel knife.
You can get replacement blades, ceramic blades and other exchangeable blades here. For sharpening the steel blades, we recommend our sharpening tool.
Dimensions:Total length: 93 mmShank size - diameter: 5.5 mm
Included blade:Blade length 17.5 mmBlade width 9.5 mmBlade thickness 2.0 mm
Craft Japan Professional Swivel Knife
From
€28.00*
Craft Japan Professional Swivel Knife,
with ball-bearing saddle for smooth and finest cuts. To pre-cut the leather before tooling or to cut patterns and pictures into leather. The saddle can be adjusted in height with the enclosed hex-key, so this swivel knife is adaptable to almost any hand. When properly adjusted, your hands will tire and cramp less and help you with elaborate tooling works.
These versions are delivered without blade. Matching blades can be found on the following pages in our shop:
Standard Blades for Swivel KnivesCeramic Blades for Swivel Knives
Available options:
- # narrow "S"Barrel Ø: 9.4 mmTotal length: 63 mm - 88 mm (Knifebody to lowpoint of the cradle)Effective adjustable height 25 mmShank - diameter: 5.5 mm- # medium "M"Barrel Ø: 11 mmTotal length: 74 mm - 99 mmEffective adjustable height 25 mmShank - diameter: 5.5 mm
